Steam Quality Test Kit F

Kit F Kit F Contents Kit F NCG Components Kit F Dryness Components Kit F Superheat Components


This Steam Quality Test Kit provides components necessary to enable the measurement of Non-Condensable Gases, Dryness Value and Superheat.

It includes an electronic balance and tools.

Part No. 1982

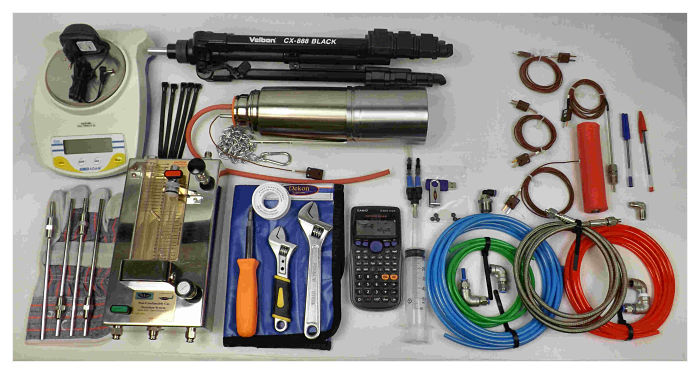

Items included in the kit:

Flight case
Tripod assembly
Syringe pump
Non-Condensable Gas Apparatus (includes fitted type 'T' thermocouple)
Electronic balance
Superheat expansion tube
Dewar flask
Flask stopper, dip tubes & connecting tube
Measuring cup and flask holder
Toolwrap
Pitot tubes 0.4mm, 0.6mm, 0.8mm and 1.0mm (BSP, NPT or triclamp)
Adjustable spanners
Multifunction screwdriver
Reel of PTFE tape
6mm push fit tube weights

            Water connection elbow ½” BSP x 6mm push fit
Steam connection elbow ¼” BSP x 6mm
Thermocouple probe gland
Thermocouple connecting cables
Thermocouple probes (welded tip)
Thermocouple probe 4mm x 150mm
Pair of protective gloves
NCG air-break device
5m x 6mm red tube
5m x 6mm blue tube
Flexible steam hose
Pens
Electronic calculator
Memory Stick with Instruction Manual and Calculations on spreadsheet
Re-usable cable ties
The customers choice of this kit assumes that:

  1. The sampling of steam for laboratory analysis is not required.
  2. Traceable calibration is not required.
  3. The customer has components as below that compliment this kit:
  1. Indicating or logging thermometric equipment configurable for type 'T' thermocouples
